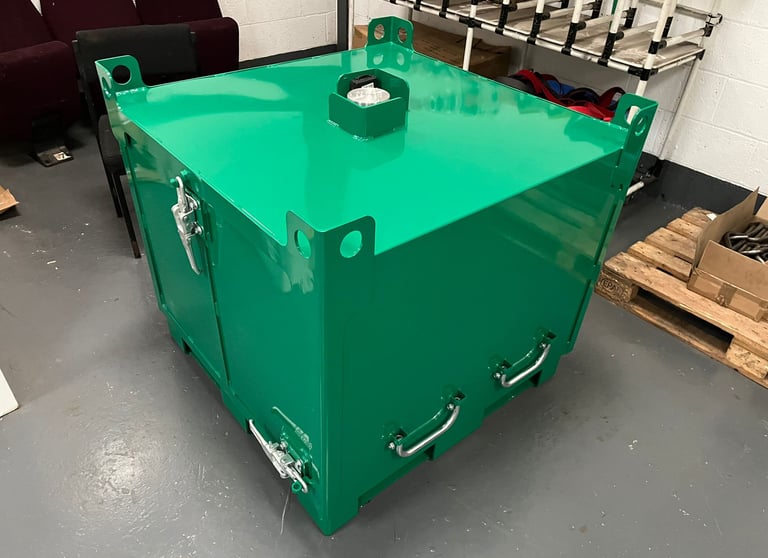

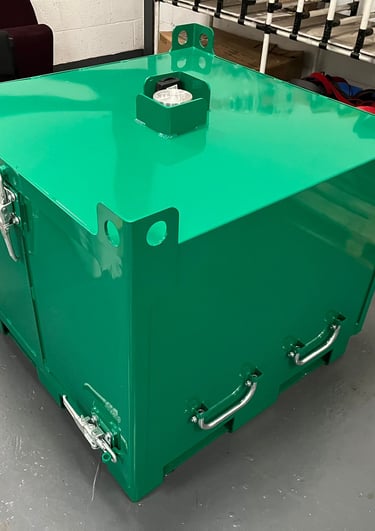

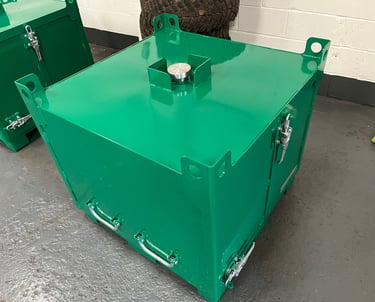

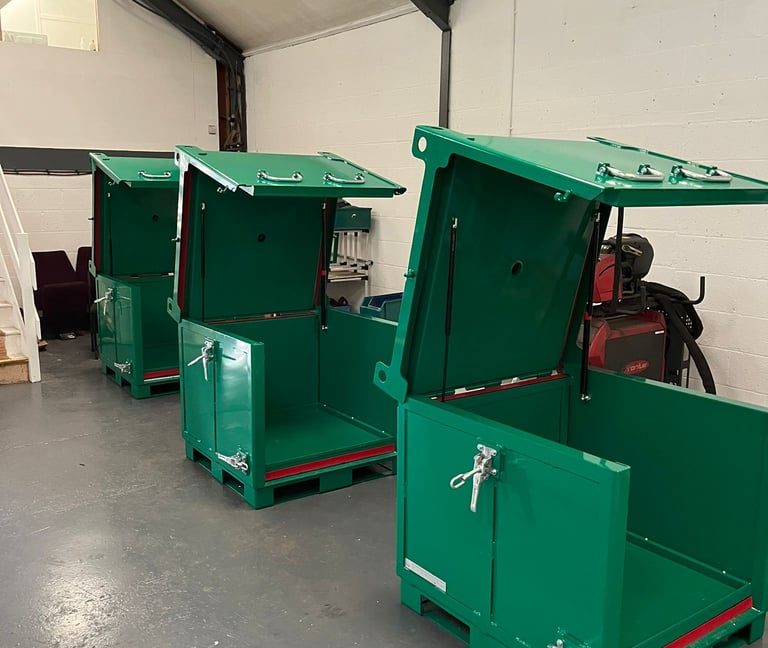

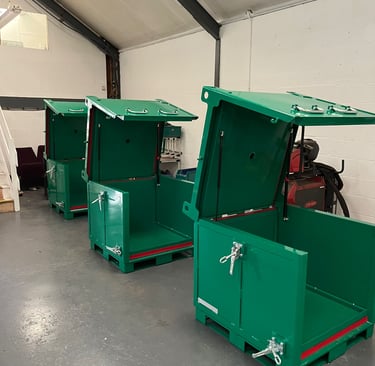

Battery Safe Containers

Independently tested and certified:

• UN Chapter 6.6 for dangerous goods transport

• UN P911 and LP906 (damaged, defective and prototype batteries)

• ADR – road transport

• RID – rail transport

• IMDG Code – maritime transport

Performance & Certifications

Performance criteria met:

• External temperature remains below 100°C

• No flames escape

• No projectiles escape

• Structural integrity maintained throughout the event

• Gas management prevents hazardous pressure levels

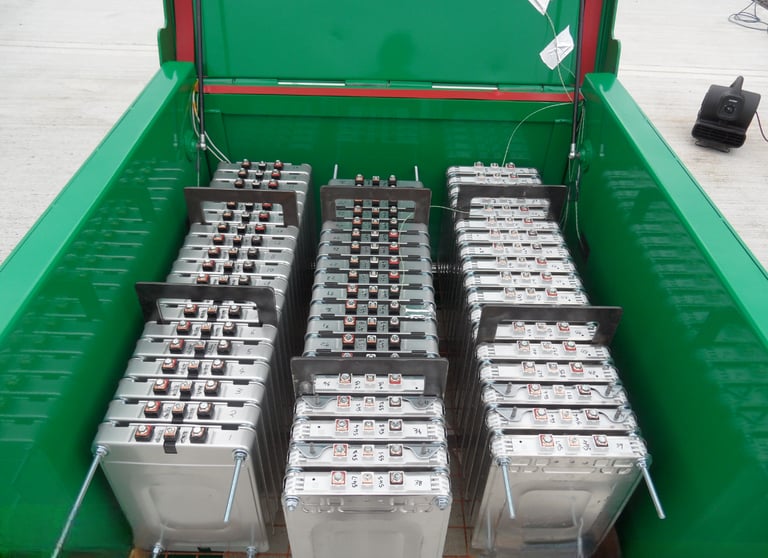

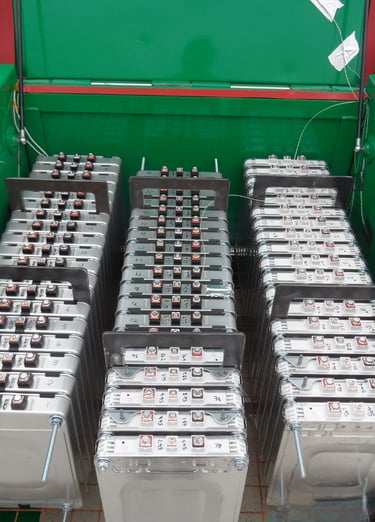

All testing is conducted at UKAS-accredited laboratories and certified by the UK Vehicle Certification Agency (VCA).

Design Features

Fire Containment Systems

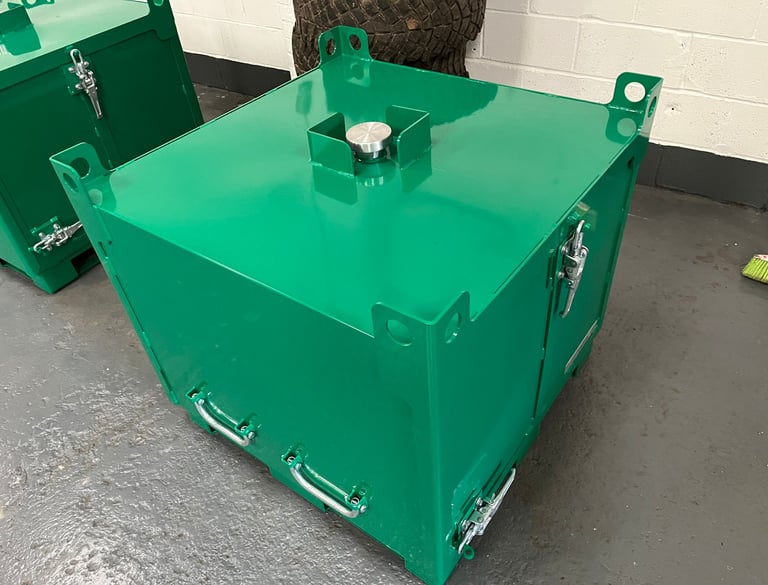

Triple-Layer Construction

• Powder-coated sheet steel exterior for durability and chemical resistance

• Double-walled internal chamber with TS50-grade insulation

• Built-in spill containment bund for electrolyte capture

• Reinforced structural frame designed to maintain integrity under extreme heat

• Provides over 24 hours of fire resistance, containing heat and combustion products throughout the burn

• Thermo-expanding seals that close ventilation gaps when exposed to fire

• Controlled venting system that safely manages gas release during an incident

How it works

Thermal runaway generates extreme heat, rapidly expanding gases, projectiles and flames. Battery Safe containers are engineered to manage each of these challenges:

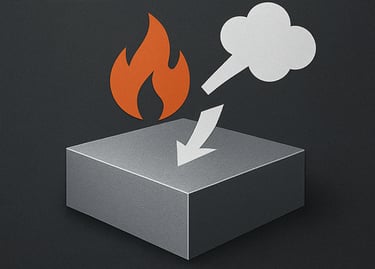

Gas management and deflagration venting prevents pressure build-up

Thermo-expanding seals activate under high temperatures

Triple-layer steel and insulation structure absorbs and contains heat

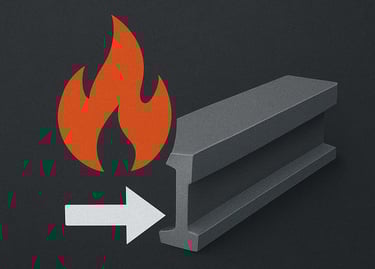

Intumescent channels expand rapidly suppressing any flame escape.

Specifications

Maximum Capacity

20kWh battery energy

Internal Volume

400 litres

Maximum Battery Weight

Up to 421kg

Maximum Gross Weight

766kg

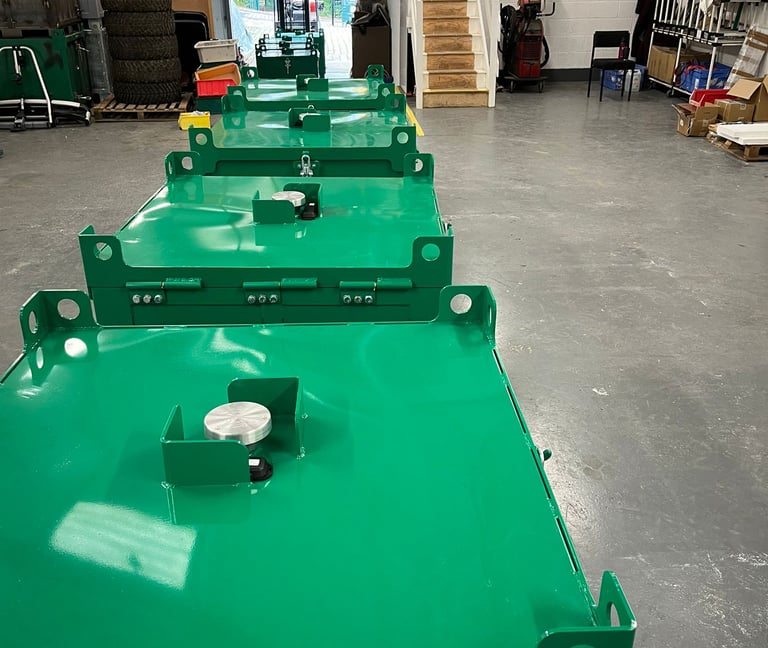

Multi-Unit Set Up

Stackable up to 3 units

Logistics

UK pallet footprint for easy transport
